- Video Surveillance Client Workstation -

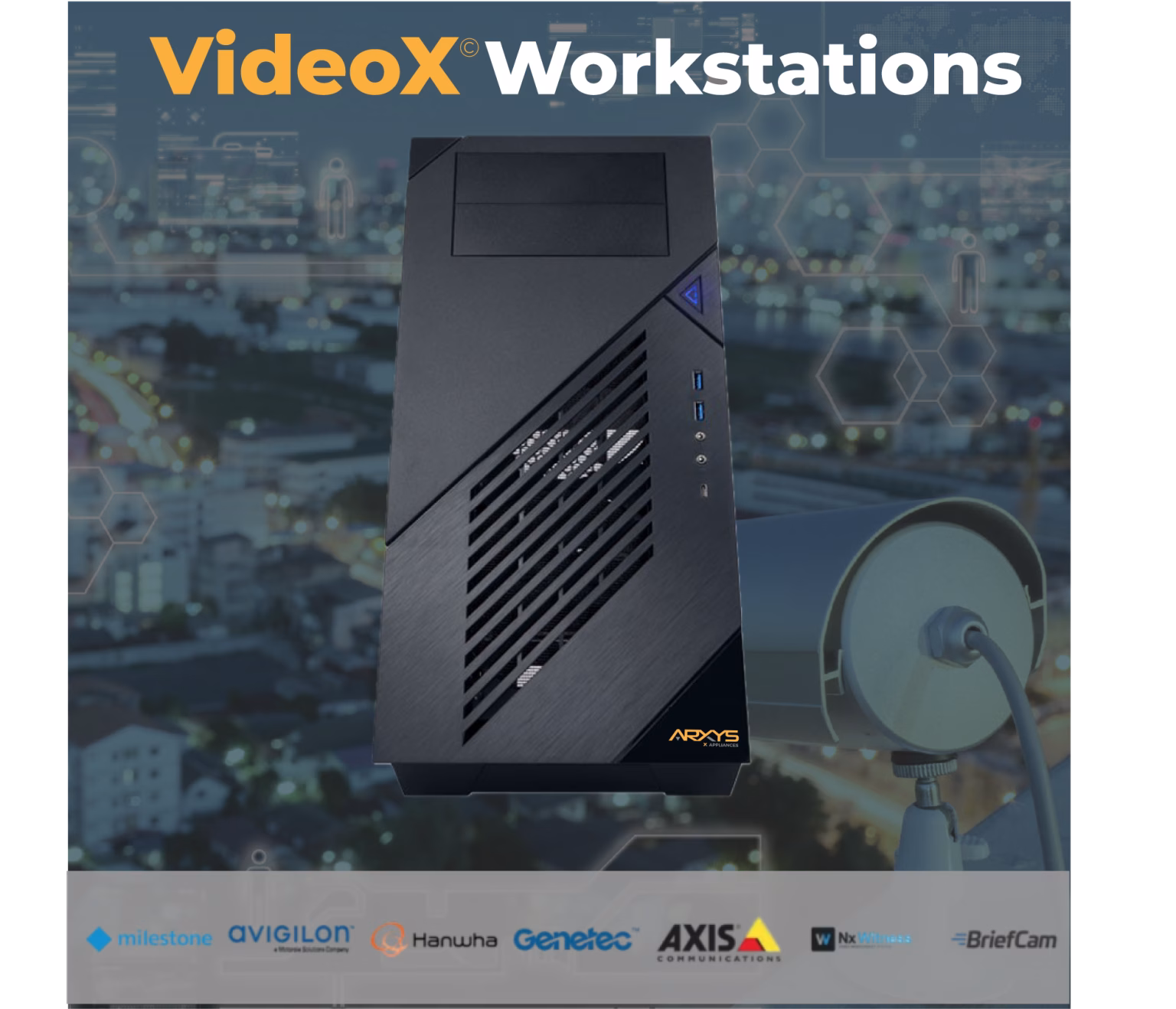

VideoX V3 Workstations
Hardware Accelerated Video Surveillance Video Viewing Workstations
High Performance up to 300Mb/s Bandwidths & Up To 12x Monitors
Milestone, Genetec & Avigilon VMS Clients
Hardware Accelerated Decoding
Breakthrough performance for video stream decoding and viewing using multiple Intel + Nvidia Turing Class GPU. 50% Higher Performance.
Remarkable Viewing Performance
The 11th Gen Intel Core CPU with 16-32GB RAM and Optimized NVMe SSD deliver intense real-time performance of up to 300Mb/s Bandwidth & up to 12x monitors.
Engineered To Excel
The Arxys VideoX Workstation is designed to excel at delivering rock solid video streaming and client viewing including advanced search. Easily deployable & instantly usable.
Key Advantages
Certified & Verified
Purpose-built for demanding video surveillance installations where performance and security matter. Validated performance with Milestone, Genetec and Avigilon client applications.
GPU Hardware Acceleration
Hardware Accelerated Video Decoding delivers breakthrough performance. Supports up to 300Mb/s Video decoding bandwidth for 24/7 Video Monitoring with zero frame loss.
Investment Protection
Comprehensive 3 Year Advanced Parts Replacement, Next Business Day Warranty and white glove support eliminate support headaches.
Engineered To Perform
Arxys engineered the VideoX Workstation to deliver breakthrough video performance for demanding security applications.
Intel Core 11th Generation CPU with 6-12 dedicated cores drives exceptional performance.
16-32GB of High performance DRAM ensures multi-streaming support and real-time viewing.
500GB High performance NVMe SSD optimized for video surveillance client workstation loads.
Lightning fast multi-megapixel video decoding and 4x or 12x monitor support for demanding security applications. Multiple Nvidia GPU cards.
Video Surveillance. Certified.
VideoX Workstations are powerful client monitoring workstations. Designed for high-performance video surveillance monitoring where security officers face demanding camera streaming requirements. The VideoX Workstation is ideal for mid-size and larger installations that require live monitoring and advanced management, and it includes a number of features that facilitate rapid incident response and coordination including Interactive maps, mobile monitoring and alerts and much more.
With support for up to 300Mb/s video decode bandwidth and support for up to 4x 4K monitors, Arxys VideoX Workstations are powerful, all-in-one video surveillance client viewing stations.

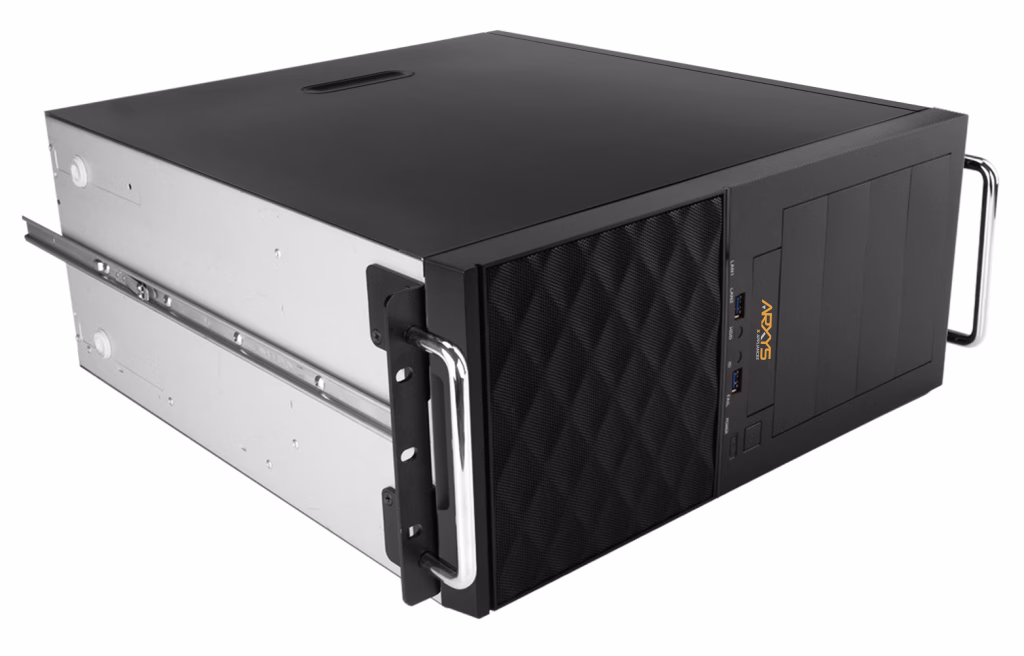

Tower Design - 1U Rack-mount Available
New Compact mid tower design puts the power of live video surveillance monitoring wherever you need it. And a full 600W of power ensures smooth operation.
GPU Acceleration
Harness the power of 1 to 4x of Nvidia latest GPU with up to 4200 Cuda Cores delivers up to 300Mb/s bandwidth (Monitors not included)
Power To Spare
With a full 16-32GB's of DRAM, a 11th Generation 6 Core Intel Core i5 or 11th gen 8 core i7 CPU, and even 11th gen i9 CPUs and SSD storage the VideoX Workstation will power demanding security operations with ease.
Advanced Support
3 Year Advanced Warranty delivers Next Business Day Advanced Parts Replacement warranty and support for rock-solid uptime
Some of Our Satisfied Clients
Specifications
| Specifications | VideoX Workstation W5T1 | VideoX Workstation W7T2 | VideoX Workstation W9T3 |
|---|---|---|---|
 | | | |
| Part Number | VXV3-W5T1-WS | VXV3-W7T2-WS | VXV3-W9T3-WS |
| Maximum Bandwidth | 100Mb/s | 200Mb/s | 300Mb/s |
| Form factor | Mid Size uATX Compact Tower, 358 x 176 x 404mm 14.1” x 6.9” x 15.9” | Mid Size uATX Compact Tower, 358 x 176 x 404mm 14.1” x 6.9” x 15.9” | Mid Size uATX Compact Tower, 358 x 176 x 404mm 14.1” x 6.9” x 15.9” |
| OS | Windows 10 IoT Enterprise | Windows 10 IoT Enterprise | Windows 10 IoT Enterprise |
| CPU | Intel Core 11th Gen i5, 4.4Ghz, 6 Cores/12 Threads | Intel Core 11th Gen i7, 4.9Ghz, 8 Cores/16 Threads | Intel Core 11th Gen i9, 5.2Ghz, 8 Cores/16 Threads (Liquid Cooled) |
| Memory | 16GB DDR4 DRAM | 16GB DDR4 DRAM | 32GB DDR4 DRAM |
| GPU's | Intel QS + 1x Nvidia Turing T1000 8GB Cache | Intel QS + 2x Nvidia Turing T1000 8GB Cache | Intel QS + 4x Nvidia Turing T1000 8GB Cache |
| OS Drive | 500GB NVMe SSD Optimized Video View | 500GB NVMe SSD Optimized Video View | 500GB NVMe SSD Optimized Video View |
| Validated VMS Clients | Milestone, ONSSI, Avigilon, ExaqVision, Genetec | Milestone, ONSSI, Avigilon, ExaqVision, Genetec | Milestone, ONSSI, Avigilon, ExaqVision, Genetec |
| Power Supply | 600W Platinum | 600W Platinum | 600W Platinum |
| Monitors Supported | Up to 4x HD monitors supported (monitors not included) | Up to 4x HD monitors supported (monitors not included) | Up to 4x HD monitors supported [up to 8x monitors can be used but at lower total bandwidth] (monitors not included) |
| Networking | 2x 2.5Gb Ethernet port | 2x 2.5Gb Ethernet port | 2x 2.5Gb Ethernet port |
| Optical Drive | DVDRW | DVDRW | DVDRW |
| Datasheet | Datasheet | Datasheet | Datasheet |
